Brushes and Tools
To use a tool, just tap on it and start sketching. Tilt and pressure are supported with some styli (like Surface Pen) and with some tools (each tool is a bit different), and will happen naturally as you tilt or press on the screen. Try them out and see which you like best.
As mentioned in the Tool Wheel section, the middle ring allows you to adjust the active brush’s size (how big it is), opacity (how transparent it is), smoothing (how bumpy or smooth you want your line to appear once it’s drawn. 0% is no smoothing, 100% gives you a perfectly straight line between your starting and ending points no matter how wriggly you get. Great for train rides and polishing any hand drawn lines.) Tap on one of these options to bring up your presets, or for a shortcut, just drag across it with your finger to adjust.
To access the Brushes menu, tap again on an active tool, or double-tap on an inactive tool.
In the Brushes menu, you can select a tool from the basic set of sketching tools or from the brush market.
Up at the top of the menu is your brush viewer, which changes to preview the brush you choose.
Below the viewer you can find your basic tools, where you can select from a variety of organic or engineering brushes.
Scroll down further and you’ll find the Brush Market, with different types of artistic brush libraries that you can unlock a-la-carte, or enjoy open access to if you’ve subscribed.
Basic Brushes and Tools
Pens are most widely used in sketching when you want to make a statement or reflect permanence. Our Pen and Fountain Pen tools react to velocity to vary their line width - draw fast to get a thicker stroke. Our Dynamic Pen reacts to pressure. The Fixed Width Pen does what it says on the tin - it maintains a constant width from cap to cap.
Soft & Hard Pencils
Slightly different in texture and feel, these traditional sketching tools are modeled on real pencils. They react naturally to tilt, pressure and velocity with a supported active stylus like Surface Pen. For great shading, tilt your stylus like you would a real pencil.
Have you ever used a COPIC marker? Our markers have the same texture, transparency and edge that these popular markers have, making them great for highlighting, texturing and illustration work. Give yourself a wide tip or a narrow one, or increase / decrease the opacity to your liking.
The airbrush flows onto the screen with subtle texture and soft edges like the real medium. Popular with sketchnoters, for highlights and for painting, give your design some sheen.
Not to be confused with Bucket Fill (which we’re currently working on - lots of definitional bits to think about with the interactive parameters of vector strokes), the Filled Stroke tool is a brush unique to Concepts. It allows you to draw any type of shape - simple, wriggly, complex - with a stylus or finger, and fill the positive space inside.
"Positive space" refers to any area inside your drawn line between start and end point that is original to the stroke - as in, the area hasn’t been drawn over a second time during the same stroke. This crossing over of filled area causes it to become “negative space” and remain empty. Of course, if you draw over the area a third time within the same stroke, it becomes positive again and is filled.
Your resulting fill is a smooth, clean finish, customizable with opacity. Excellent for shadows, light, and complex figures, we think you’ll appreciate the possibilities this brush offers your design + art toolkit.
Troubleshooting. Since Fill takes into account the start and end points of your line, make sure Line Smoothing is set below 100%. Otherwise your shape will disappear into a line or a point as though the rest of the stroke never happened. Also check that your transparency is above 0%, or like all strokes it may disappear, only to be found when Selecting in the area.
Great for annotations, partial boundaries or a bit of variety, the dotted line is a single stroke, not thousands of dots. Treat it as a textured stroke susceptible to color, opacity and smoothing.

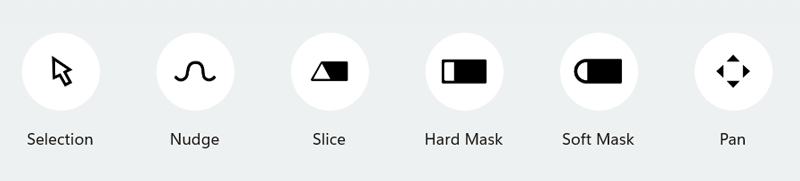

The Selection tool can be added to any of your tool slots and has two modes: a single-select Item Picker and a multi-select Lasso. Toggle between these two options using the popup at the bottom of your canvas, or put a second finger down anywhere to temporarily toggle the mode.
The Selection tool can also be activated via tap+hold anywhere on the canvas - helpful for when you’re in sketching flow and don’t want to change tools. It can also be assigned as your finger gesture in Stylus settings. To learn more more about this tool, see Selection.
The Nudge tool allows you to push and pull your lines about like a piece of string. Touch your stylus directly onto a stroke and drag it to pull it. To push a line, touch your stylus away from a line and watch the circular nib appear, then nudge at your line. You can adjust the size of the tool using the size preset in the tool wheel. Use a smaller size and zoom in to nudge tight corners, use a larger size and zoom out to nudge gentler curves.
The Slice tool is about as close to a real eraser as you’ll get in the vector world. It’s not exactly a pixel eraser... you can’t rub away edges of strokes, but you can cut strokes into pieces - redefining them into separate, independent strokes - and erase aka destroy your vector data by sliding the puck across them.
The Slice puck is adjustable for size. Make it bigger to “erase” a scribble with a swipe, or make it smaller for more precise incisions, then select and delete the remaining line.
You can also set the size to zero and divide your strokes without chopping away at their length (handy for strokes that use exact measurements). It might not appear that anything happened when you ran your puck through the line, but try selecting one end of the stroke and you’ll see that it was cut in two.
When slicing shapes made with the Filled Stroke tool, you can cut from an outer edge into the shape and carve out full areas.
In a traditional pixel-based world, erasers delete things permanently. But vectors aren’t pixels, they behave and remember data differently, and if you're comfortable with programs like Adobe Photoshop or Autodesk Sketchbook Pro, the soft mask tool will function similarly to masking tools in aforementioned software. It visually removes anything underneath it like a lovely soft eraser, but the data isn't actually gone. You can still retrieve old strokes later, or adjust your mask as your drawings progress.
If you want to remove strokes completely, try selecting them with a tap+hold and then use Delete, or use the Slice tool to incise and delete sections or destroy them from the canvas.
Double-tap the mask button to open a Quick Clear menu. Here you can choose to delete everything on a particular layer, or clear everything in the image.
The soft mask stays the same size regardless of your zoom level. This means the further you zoom inward, the smaller its effects will be - very useful for working with the details. You can also change the size of the mask using the Size slider, and its effects will scale the same way.
Whether you want to showcase your work to your client or just pan through your infinite canvas, you can use the Pan tool. It allows you to pan and zoom without accidentally selecting or changing anything in your drawing.
Brush Market Brushes
The texture-rich, artistic tools in the brush market are made from image-based stamps created from their actual physical counterparts. Strokes made with these brushes (as well as the Dynamic Pen) are movable and adjustable like all of our other vector-based tools, but they are limited when it comes to zoom. As they are made from pixel-based images, they will pixellate if you zoom in too far, depending on the brush. Try them out and see which ones you like best, or try changing the look of existing drawings by selecting your strokes and switching to a new tool.
Memphis Patterns - These brushes let you add a variety of playful patterns to your work just by coloring in.
Exterior Walls - Apply natural, realistic faces to your designs. Try the different types of stone, paneling, concrete, plaster and steel.
Pastels - Captured from their actual physical counterparts, the dry pastel, oil pastel, chalk, pastel pencil and charcoal look and feel very much like the real thing.
Pencils - These pencils complement the basic hard and soft pencils to give you a full set of traditional sketching pencils, including a 4B Solid Graphite, 2H Solid Graphite, Knife-Sharpened Pencil, Carpenter’s Pencil, round and square Graphite Sticks and a Mechanical Pencil.
Pens - These pens round out your ink drawing set, including a Ballpoint Pen, a Gel Pen, firm, medium and soft Brush Pens, a Felt Tip Pen and a Felt Tip Marker.
Spray Paints - Add some beautiful spatters and sprays to your art with these graphitic paint tools. They come in fine, medium, fat, flat, side and spatter sprays.
Airbrushes - Our airbrushes are soft, smooth and even for coating any design. They come in hard, medium, soft, dynamic and flat brushes.
Halftones - These vintage halftone brushes stem from printing techniques from the 1890s onward and add some classic style to your comics and illustrations.
